RC Plane basic analysis
First made a 3D CAD model in Autodesk Fusion 360 from the given dimensions.
​
After that apply the appropriate appearance and set the environment scene-setting to render some photos and videos from Autodesk online rendering.

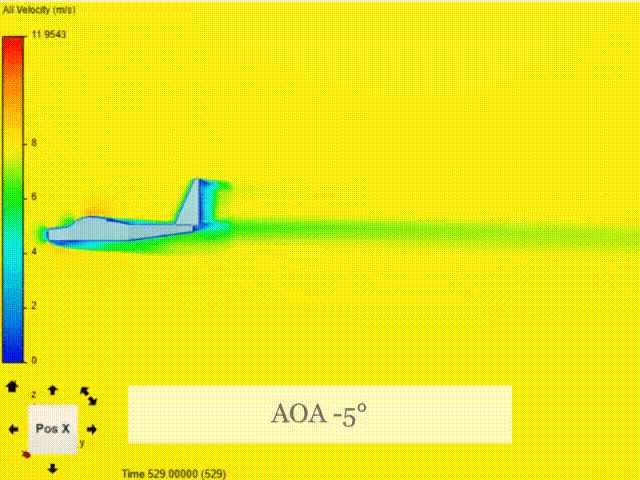

Then export this model from fusion 360 with the appropriate CAD format and imported it into Simscale(an online Simulation platform) and did the meshing and apply relevant boundary conditions and simulate it at a different angle of attack, then got some results and data with post-processing tools.

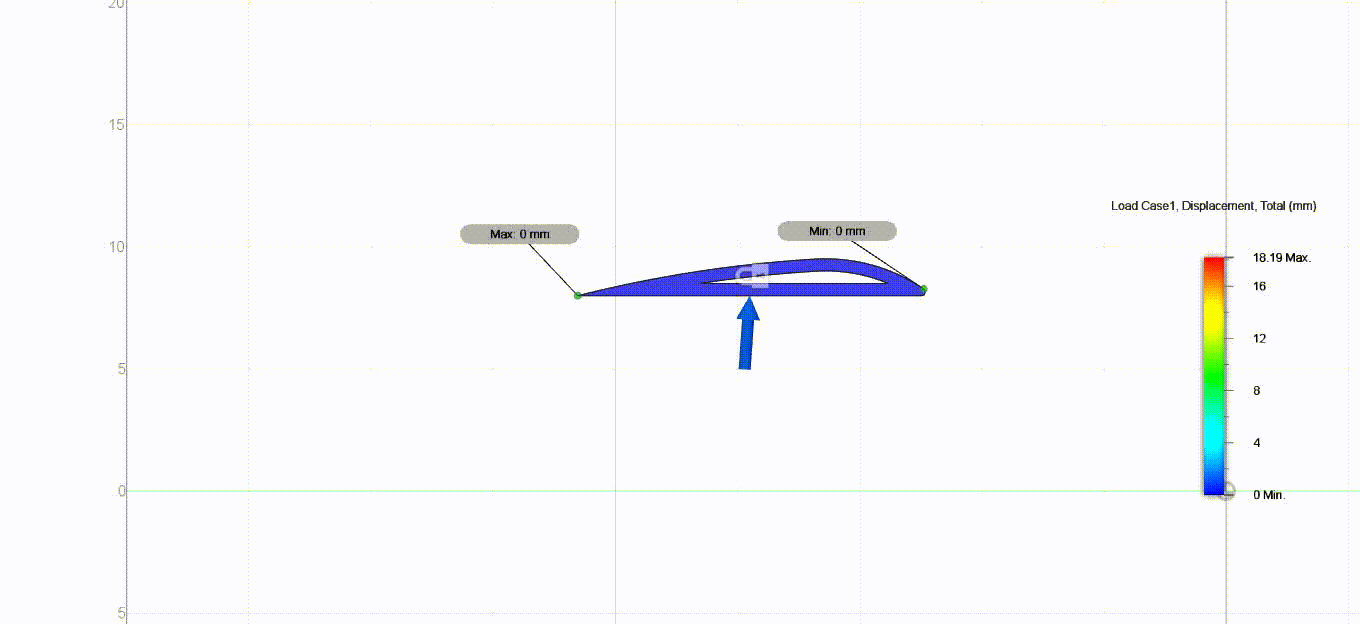

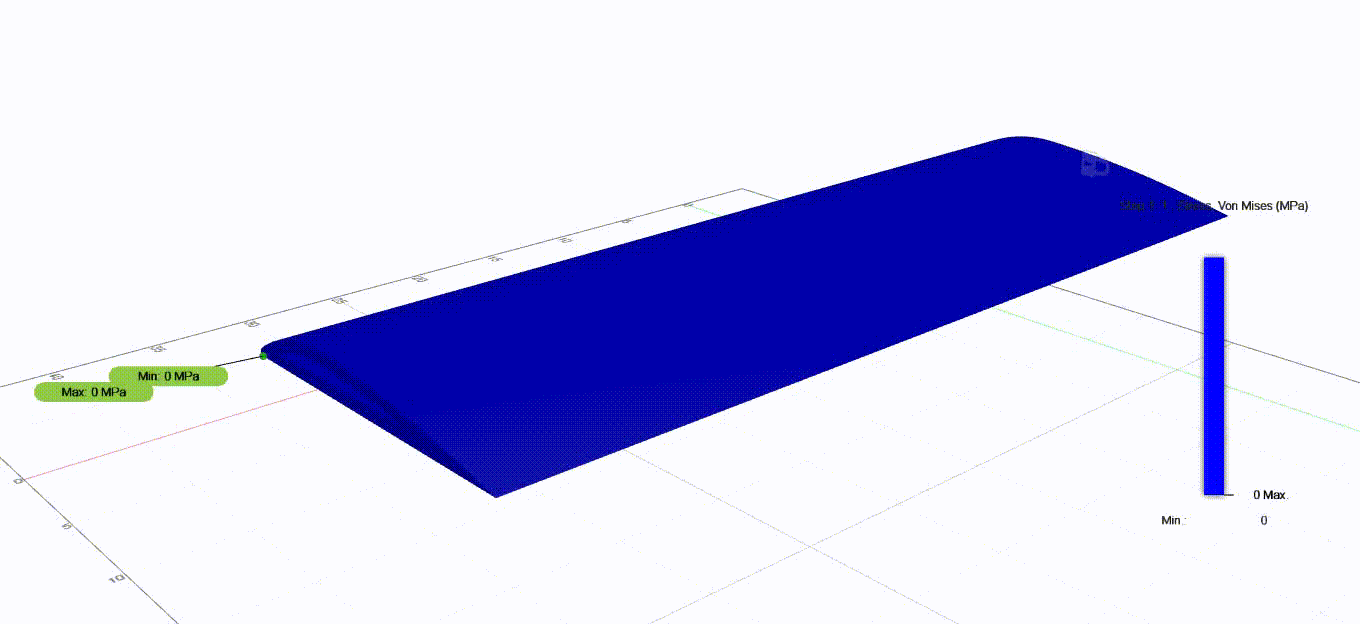

After Getting lift(upward force) from CFD analysis, I analyzed wing strength in Autodesk Fusion 360 simulation workbench with Static stress simulation and event simulation.
